Loading Extensions (plugin features)

Since version 2.9.0, Shape-Out 2 allows loading dclab plugin features. You may need those if you need to quantify anything that is not covered by the default features.

Note

If you installed Shape-Out via installer (not via pip), then many extensions might not work due to software dependencies that those extensions might have. If this happens, please create an issue in the Shape-Out 2 repository so we can find a solution.

Warning

Extensions can be harmful. Please only load extensions that you received first-hand from people you trust.

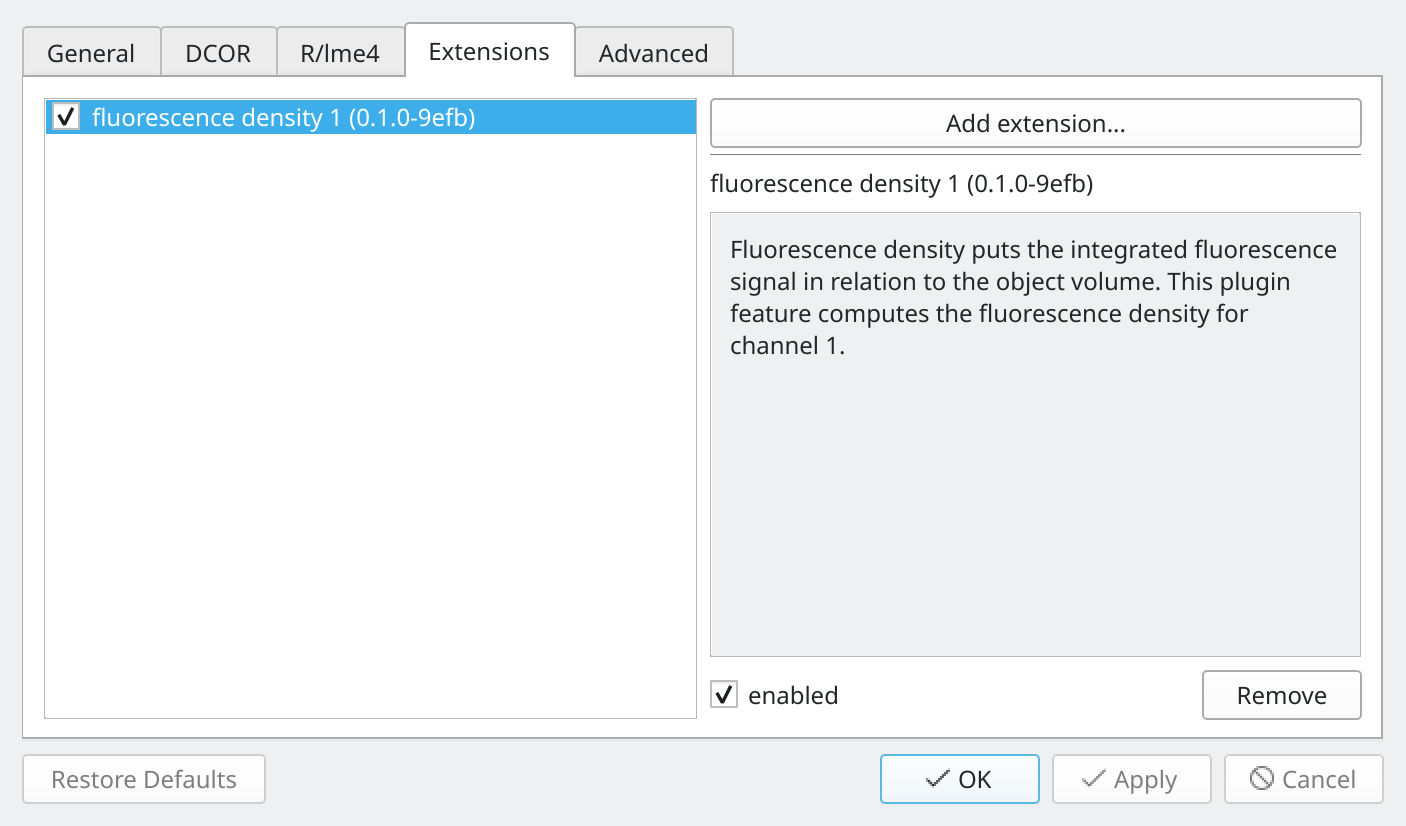

You can load and manage extensions via the Edit | Preferences dialog in the Extensions tab.

Example: Fluorescence density

Download the extension_fl1_density.py extension and add it to Shape-Out. You will see a new scalar feature named “FL-1 density [a.u.]” that quantifies the collected fluorescence signal per object volume for the fluorescence channel 1. Using this extension as a template, you could create the density features for the other fluorescence channels as well.
