Differences to Shape-Out 1¶
Shape-Out 2 is a complete rewrite of the user interface from scratch. The overall user experience is much better compared to Shape-Out 1. The main reasons for the development of Shape-Out 2 were:
The graphical user interface (GUI) of Shape-Out 1 was designed to be flexible with regard to new configuration parameters. While this played well for the beginning of RT-DC development, the GUI now appears not very thought-out for a mature measuring technique. The workflow of Shape-Out 2 has been designed to meet most of its users needs.
Shape-Out 1 is condemned to Python 2 (which reached its end of life January 1st 2020), because it relies on the combination of chaco (for plotting) with wxPython 3 (for the GUI). Chaco is now focusing on PyQt and thus does not support the new wxPython 4. However, wxPython 3 does not support Python 3, so we are stuck with Python 2.
For Shape-Out 1, there appeared a weird issue which is probably related to the old wxPython library and some other software installed on some Windows systems.
Both versions of Shape-Out rely on dclab which provides the core functionalities for RT-DC data analysis. There are, however, a few breaking changes that might prevent you from moving your data analysis from Shape-Out 1 to Shape-Out 2:
Shape-Out 2 does not anymore support the .tdms file format. If you would like to use .tdms data in Shape-Out 2, you have to convert those data to the .rtdc file format first. You can do just that with DCKit, which provides a convenient GUI for several other RT-DC data management tasks as well. The .rtdc file format is faster, occupies less space on disk, and consists of only one file per measurement (no more para.ini, etc.).
Shape-Out 1 sessions cannot be opened in Shape-Out 2. This is mostly caused by the different approach to data analysis. In principle, it could be possible to convert sessions (including the corresponding .tdms files), but the effort in doing so would probably exceed the effort required to just rebuild a clean analysis session in Shape-Out 2.
Shape-Out 2 does not provide a linear mixed effects models (LMM) analysis. LMM analysis in Shape-Out 1 is done using R/lme4 and thus requires a full R distribution shipped with Shape-Out 1. This blows up the installation size and makes it more difficult to deploy. Furthermore (and we are not saying that LMM Analysis is “bad”) we are also looking into other methods for determining statistical significance which might be more intuitive to understand.
Shape-Out 2 introduces several terms in the user interface that also play a role in data analysis and are consequently used in the entire code base.
- block matrix
The Block Matrix is a visualization of the analysis pipeline. It is divided into data matrix (filters) and plot matrix (plots).
- dataslot or slot
A slot holds all information about a measurement: the path to the .rtdc file, fluorescence labels, display color, etc. (see the Dataset tab in the Analysis View).
A filter is a set of filtering options (box filter, polygon filter, downsampling, etc.) that can be applied to a slot (see the Filter tab in the Analysis View). Filters can be exported and imported again in Shape-Out 2 (.sof file format).
- filter ray
A filter ray is a list of filters that can be applied to a slot. In Shape-Out 2, each row in the Block Matrix contains one filter ray.
A pipeline consists of all filters, slots, plots, and the filter rays (the filter selection) applied to each slot. A Shape-Out 2 session file (.so2) stores all information necessary to rebuild a pipeline.
A plot is a user-defined visualization of a slot/filter ray combination.
The Block Matrix gives an overview of the current analysis pipeline. Each row represents a dataset (purple). The columns represent either filters (yellow) or plots (blue) of your pipeline.
You can perform dataset operations in the purple rectangular area at the beginning of each row: To modify a dataset, click on the edit button. You can duplicate, insert anew (unmodified), or remove datasets using the dropdown menu. You can also exclude a dataset from an analysis via the check box.
Filters can also be modified, copied, removed and disabled. By default, all filters are disabled when they are created. To apply a filter to a dataset, click on the corresponding matrix element. The element changes its color from gray (incactive) to green (active). In Shape-Out, all filters that are applied to a dataset are called a filter ray. In the above example, the filter ray only consists of a single filter for each dataset. Filter rays may be different for each dataset.
By holding down the Shift key while clicking on a matrix element, you can activate the Quick View for the specific dataset (with filters applied up until the selected column). The block matrix element is then colored pink.
To add a plot, click on the New Plot button in the tool bar. This adds a plot column with a blue header to the Block Matrix and creates an empty plot window. You can add datasets to your plot by clicking on the corresponding matrix elements. In the above example, both datasets are being used in all three plots.
The modification of datasets, filters, and plots is discussed below.
The Workspace is designed as an infinite scrollable area and contains all plot windows as well as the Quick View and Analysis View windows.

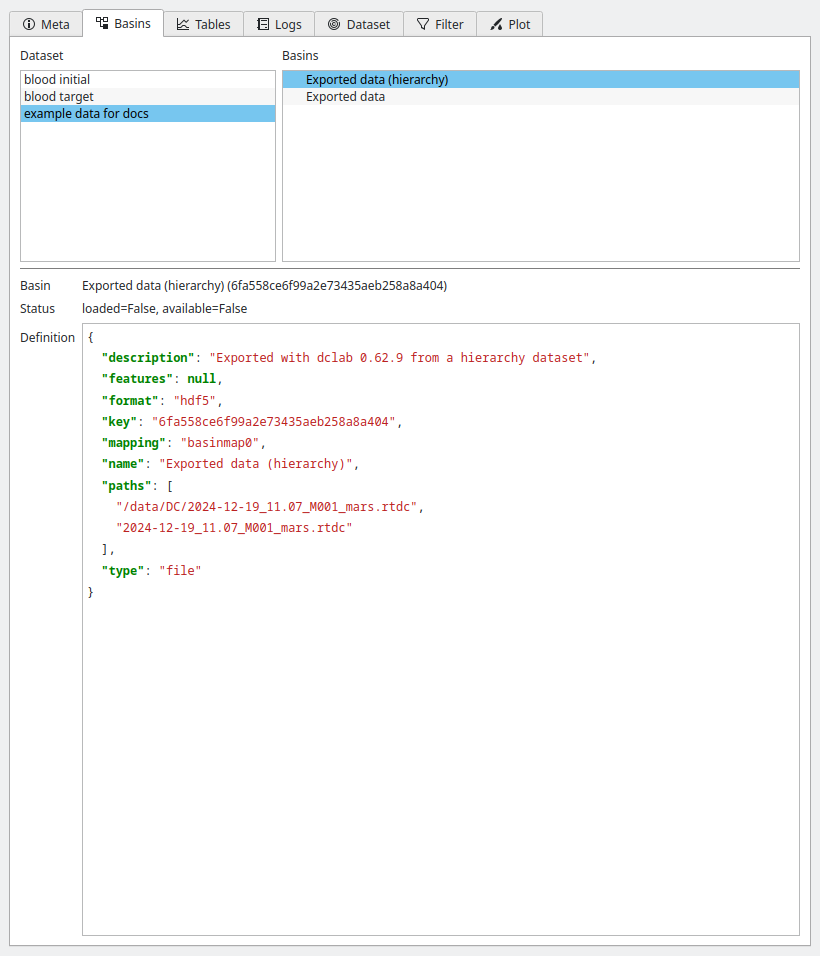

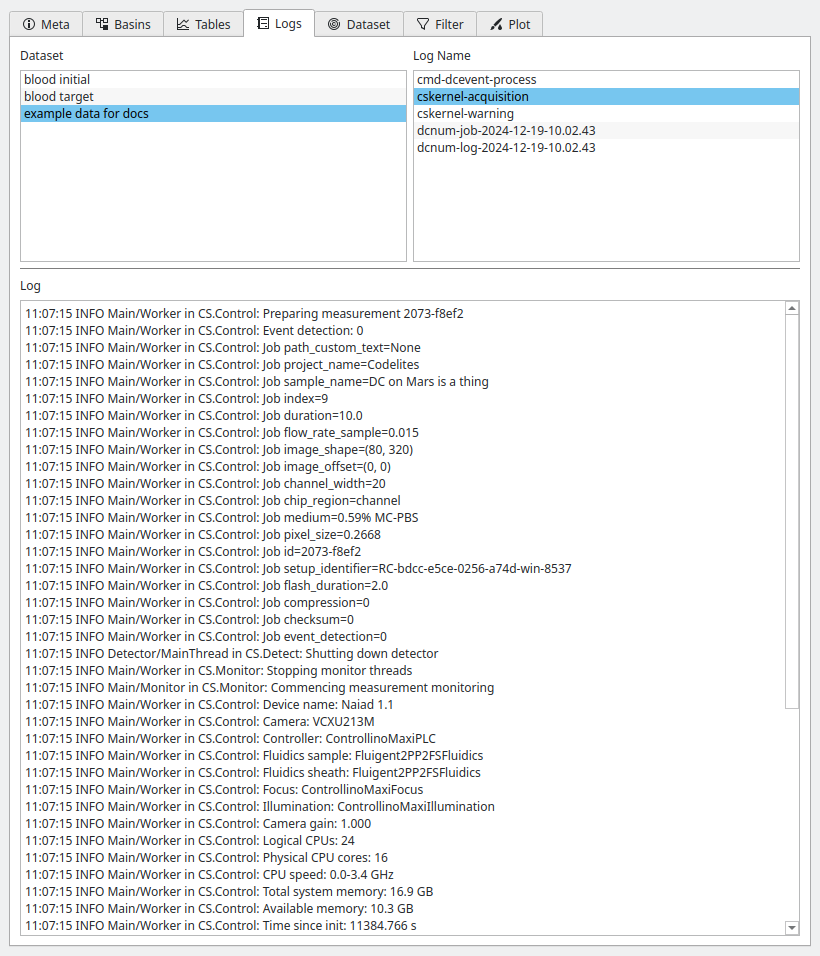

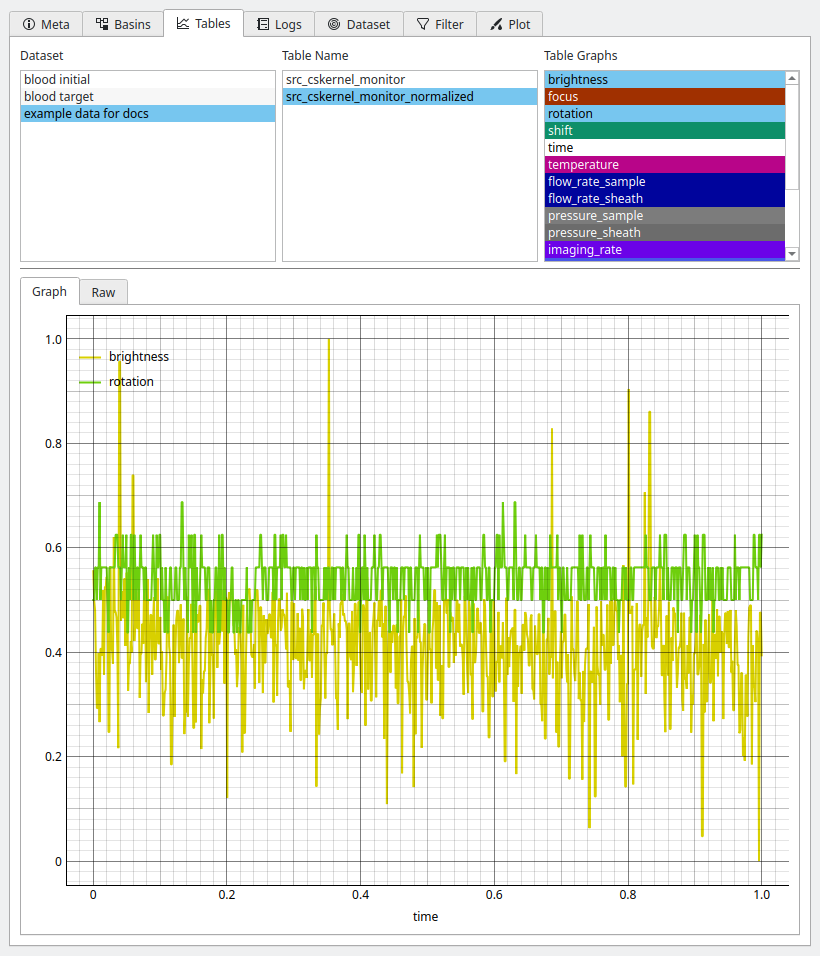

The analysis view is separated into four tabs (see screenshots below).
The Meta tab displays all metadata of the selected dataset that are stored in the original .rtdc file.
The Dataset tab allows to specify additional metadata, such as unique colors used for plotting and additional metadata for computing the Young’s modulus or correcting for fluorescence cross-talk. It also allows to specify fluorescence channel labels that will then be used for labeling the axes of plots.
The Filter tab is used to modify the filters of the pipeline. New box filters can be added by selecting Choose box filters…. Polygon filters are created in the Quick View window.
The Plot tab allows to specify all plotting parameters. Please take special note of the Division option in the Layout section (defines the arrangement of the subplots) and the Marker hue option in the Scatter plot section (allows you the specify whether the scatter data points are colored according to a kernel density estimate (KDE), another feature dimension, or the dataset color specified in the Dataset tab). In this example, contour plots are not used.
The Quick View is meant for dataset exploration. It consists of a scatter plot on the left (left click for panning and right-click for zooming) and a set of tool panels that are accessible via the corresponding tool buttons on the right.
Use the Plot panel to define all plot parameters. It also displays common statistics of the two features plotted.
The Event panel displays all parameters of an individual event. You can select single events by clicking in the scatter plot or by scrolling through the Index spin control. If available, the event image is shown alongside the fluorescence trace of the event. All features of the event are listed in a separate tab.
The Polygon Filter panel allows you to create and modify polygon filters. When the panel is active you can move the mouse pointer across the scatter plot and the image of the event closest to the mouse pointer is displayed.
